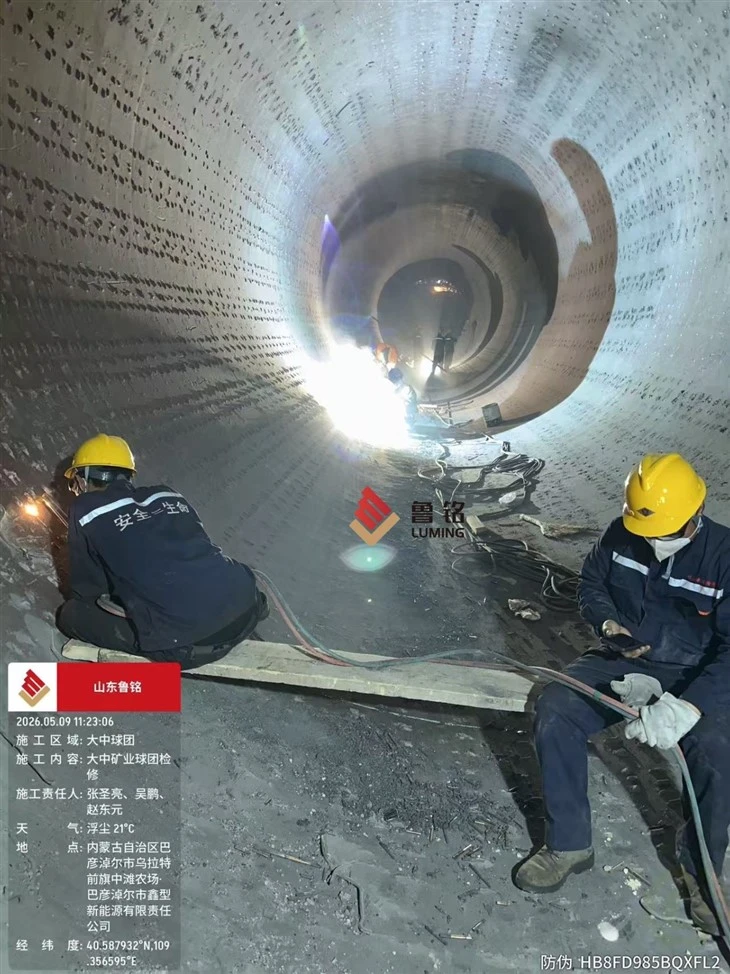

Pelletizing Rotary Kiln Refractory Lining Integrated Solution

Name: China Pelletizing Rotary Kiln Refractory Lining Integrated Solution Manufacturers Suppliers Factory - Luming New Materials
Brand: Luming
SKU: 307063157

Tel/WhatsApp:0086-18905335290

Email:luming@lm-kiln.com

We provide one-stop refractory solutions for industrial kilns, from customized refractory design and material selection to the production of refractory bricks, castables, precast refractory blocks, insulation products, and refractory anchors. We also offer installation guidance and kiln dry-out support to help customers improve kiln efficiency, reduce maintenance costs, and maximize refractory service life.

The pelletizing Rotary kiln uses high temperatures (typically 1200–1350°C) to roast green balls made of iron ore powder (such as magnetite or hematite) and binders (such as bentonite). This process triggers physicochemical reactions (oxidation, crystallization, and consolidation), forming high-strength, uniform pellets. Pellets offer advantages such as high iron content, consistent particle size, and excellent metallurgical properties, making them a crucial feedstock for blast furnaces or direct reduction ironmaking. Rotary kilns are dynamic thermal processing equipment widely used in the building materials, metallurgy, non-ferrous metals, and chemical industries. Unlike most other industrial furnaces, the refractory lining inside a rotary kiln rotates continuously with the kiln shell under high-temperature operating conditions. During service, the refractory lining is exposed not only to thermal shock, hot gases, chemical attack, and abrasion from the processed material, but also to mechanical stresses caused by kiln rotation, vibration, and the compressive forces between adjacent bricks and the kiln shell. Therefore, both high-quality refractory materials and proper installation are essential to ensure reliable kiln performance.

Our company is Grate-Kiln-Cooler (GKC) System,The grate-kiln-cooler pelletizing process is widely recognized for its low investment cost, high production capacity, uniform firing, and stable pellet quality. Within this process, the pelletizing rotary kiln is the core piece of equipment that determines production efficiency and operating reliability.Unlike rotary kilns used in the cement and building materials industries, where a stable coating (kiln coating) forms in the burning zone to protect the refractory lining, pelletizing rotary kilns are designed to operate without kiln coating. As a result, high-temperature pellets remain in direct contact with the refractory lining throughout operation, causing continuous abrasion and accelerated wear. In addition, routine maintenance requires frequent kiln start-ups and shutdowns, exposing the refractory lining to repeated thermal shock cycles.For these reasons, refractory linings for pelletizing rotary kilns must provide outstanding abrasion resistance, excellent thermal shock resistance, and long-term structural stability to ensure safe, stable, and reliable kiln operation.Based on the actual operating conditions of pelletizing rotary kilns, together with extensive experience from recent pellet plant projects and long-term performance data, Shandong Luming has continuously optimized its refractory materials and lining design. The result is a refractory lining solution specifically engineered to meet the demanding requirements of modern pelletizing operations, delivering longer service life, improved operating stability, and reduced maintenance costs.

Our Product Portfolio--Rotary Kiln and Auxiliary Equipment:

Castable refractory,Precast block,Gunning mix (Plaster) for pelletizing and sintering Rotary kiln

Item		LM-GM70	LM-GM65	LM-M60	LM-PT1.7	LM-PT2.0	LM-PT2.3
AL₂O₃ % ≥		70	65	60	35	40	45
Bulk Density(g/m³)		2.70	2.60	2.50	1.7	2.0	2.3
Compressive strength(MPa)≥	110℃X24h	80	60	50	20	40	60
Compressive strength(MPa)≥	1100℃X3h	90	70	70	40	60	80
Modulus of Rupture(MPa)≥	110℃X24h	10	8	8	4	6	8
Modulus of Rupture(MPa)≥	1100℃X3h	14	12	10	6	8	10
Linear change rate,1100℃x3h, % ±		(1350℃x3h)±0.3	0.5	0.5	(1000℃x3h)±1.0	0.5	0.5
Continuous Service Temperature ℃		1500	1450	1400	900-1000	1200	1300
Service Environment		High-temperature wear-resistant zones of pellet rotary kilns and sintering machine ignition furnaces	Pellet annular cooler, grate machine, sintering windbox	Pellet grate preheating zone, annular cooler cooling stage II & III	Pellet annular cooler low-temperature hood , Sintering low-temperature duct. construction method: spraying or trowelling	Pelletizing & Sintering High-Temperature Ducts. construction method: spraying or trowelling	Pelletizing and sintering flue gas hoods, and special areas that are difficult to construct. construction method: spraying or trowelling

Our Proprietary Core Technology For pelletizing Rotary kiln

Patented Rotary Kiln Masonry Technology

"brick-and-mortar hybrid masonry process" (Patent No.: 201010130626.6)

Our Shandong Luming New Materials Technology Co., LTD has specialized in refractory materials for various types of rotary kilns for over twenty years. To address the drawbacks of traditional masonry techniques, we developed an innovative "brick-and-mortar hybrid masonry process" (Patent No.: 201010130626.6). This construction technology has been officially included in China's national《Furnace Construction Manual》.This masonry process innovatively combines the advantages of refractory brick laying and castable monolithic pouring, while effectively overcoming the limitations of both conventional methods.Standardized refractory material design schemes have also been developed for different types of kilns.With field applications in over 100 rotary kilns and continuous iterative upgrades, this solution reliably meets diverse customer requirements.

The first-generation technology prioritized operational safety and efficiency, delivering secure and long-lasting rotary kiln refractories that significantly reduced maintenance frequency while maximizing equipment uptime. The second-generation system integrates low-thermal-conductivity materials to achieve 30% reduction in kiln shell temperature and over 10% energy savings while maintaining the safety and longevity advantages. This breakthrough directly supports clients' energy conservation, emission reduction, and green production initiatives.The current third-generation masonry technology and products utilize nanomaterials, achieving safety, longevity, energy efficiency, and environmental sustainability while further reducing the thickness of refractory materials, offering significant advantages in lightweight design.

Usage Results of Pelletizing Rotary Kiln Refractory

Compared to Traditional Small Brick Masonry Process:

1.Cylinder temperature reduced by more than 30%

2.Fuel cost savings exceeding 10%

3.Completely eliminates brick dropping issues

4.Total refractory weight of the kiln body reduced by 10%, resulting in electricity savings of 10%

5.After 6 months of operation, the refractory cost is effectively equivalent to free usage

why choose us

Our Quality Management

Our company strictly adheres to national and industry standards for refractory materials in design, production, and inspection. We also comply with international standards specified by clients to meet customized requirements.Based on the principles of safety, reliability, and cost-effectiveness, we have established a comprehensive quality management system and inspection and testing system.Our internal quality control standards encompass all critical aspects: Raw material qualification,Production process monitoring, Key control point management, Equipment maintenance & inspection,Full-process quality testing & evaluation, Closed-loop quality feedback & improvement.We implement strict raw material quality control, conducting batch-by-batch inspection with full documentation to ensure consistent material compliance.During the production process, strict quality control is enforced, with every process detail rigorously monitored and inspected. A comprehensive quality management and accountability system is implemented to ensure the overall product quality is flawless.Deploy qualified and experienced project managers and professional construction teams to carry out meticulous construction, ensuring construction quality and progress, and guaranteeing timely completion with high quality and quantity.

Our service:

1.Personalized customization solutions:

Based on client requirements, we conduct multi-dimensional analysis covering: Usage Pain Points,Cost Control, Service Life,Energy Saving & Emission Reduction, Project Timeline,etc;We design configuration plans for different budgets and provide detailed product technical specifications and user instructions to ensure customers have a comprehensive understanding of the product;Provide customers with comprehensive end-to-end solutions including consultation, design, production, construction, after-sales service, maintenance and upkeep.

2.Technical Support & Training:

We Provide 24/7 customer service, ready to accept customer inquiries and feedback at any time.Based on customer needs, we can organize regular or occasional technical training sessions on product usage and maintenance to improve customers' ability to use and maintain the products.

3.High-efficiency supply and logistics solutions:

Flexible production mechanism, with adaptable production scheduling to maximize fulfillment of customer delivery requirements.Tiered Delivery Time Management: We provide customized logistics solutions tailored to client requirements, ensuring on-time arrival to meet diverse delivery needs.

4.Customized Packaging Solutions:

All delivered goods are packaged in strict compliance with the buyer's requirements as well as relevant national and industry standards.Shaped products such as refractory bricks and precast blocks are typically packaged on wooden pallets, wrapped with stretch film for sealing, and secured with plastic-steel strapping.Unshaped refractory materials are packaged in 25-50kg plastic bags, with additional outer protection using bulk bags.Our company provides customized packaging solutions including containers, wooden cases, metal boxes, and moisture-proof marine packaging, fully compliant with both local regulations and corporate requirements in your market.

5.After-sales Service & Continuous Improvement:

We provide complimentary technical consulting services to promptly address any issues encountered during product use.During the warranty period, any quality defects caused by our materials or workmanship will be remedied through free repair, replacement or improvement.During project operation, we systematically collect and analyze user feedback to promptly identify and rectify deficiencies, thereby continuously improving product and service quality while enhancing performance and energy efficiency.Continuously improve the quality management system and production processes to enhance both product and service quality and operational efficiency.
