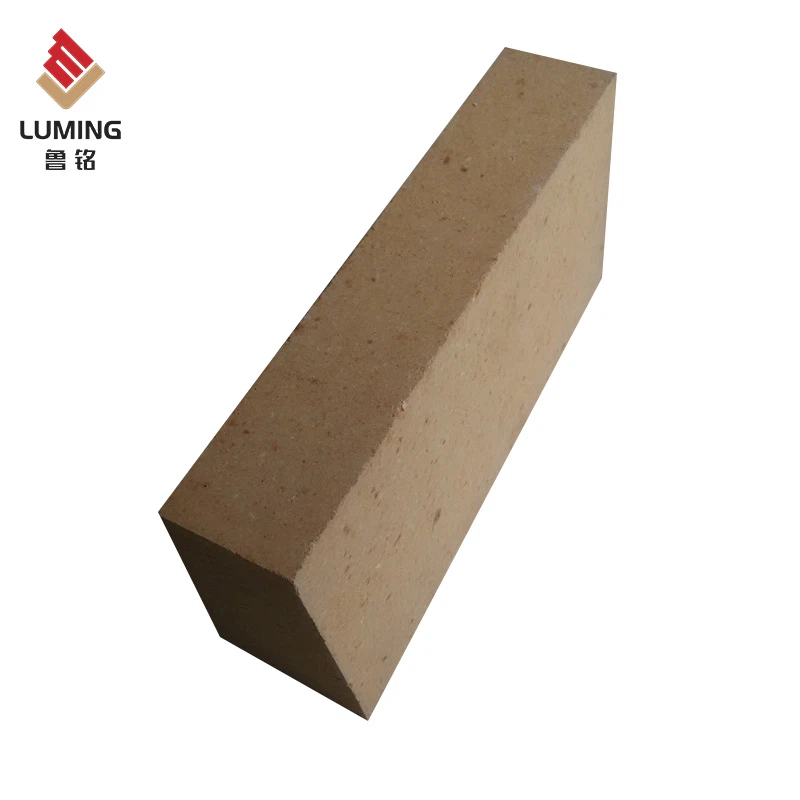

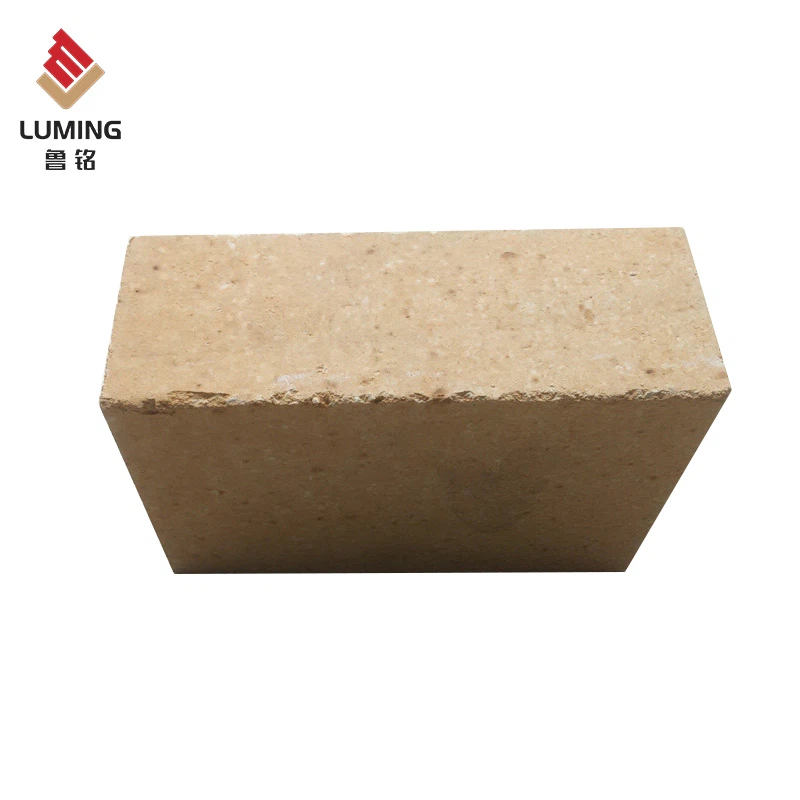

Refractory High alumina brick is refractory material primarily made from bauxite (Al₂O₃ ≥ 48%) through processes such as crushing, batching, forming, drying, and high-temperature firing. There is excellent Refractoriness and mechanical strength. It is widely used in high-temperature industrial applications. Below is its physical and chemical details:
|
Item |
SK-36 |
SK-38 |
SK-40 |
|
Al2O3(%)Min |
48 |
60 |
70 |
|
Fe2O3(%)Max |
2.00 |
2.00 |
2.0 |
|
0.2Mpa Refractoriness under load (°C) Min |
1450 |
1500 |
1550 |
|
Apparent porosity(%) |
20-23 |
20-22 |
20-22 |
|
B.D(g/cm³)Min |
2.25-2.35 |
2.45-2.5 |
2.6-2.7 |
|
Cold crushing strength Mpa |
45 |
50 |
55 |
Size
Common shape:
230X114X75mm
230X114X65mm
230x114x32mm
230x114x40mm
230x1114x50mm
300X400X75mm
Special Shape
Side arch 230x114x75/70
Side arch 230x114x75/65
End wedge 230x114x75/70
End wedge 230x114x75/65
As per customers' request and drawings to manufacture the size and type of high alumina bricks.
Note: Tolerance of standard brick:length and width ±1mm,thickness:±0.5mm.
Advantages
High Refractoriness
High alumina fire brick Al2O3 is 48%-90%,refractoriness is1750-1950oC.
Excellent Thermal Shock Resistance
Low thermal expansion coefficient enhances durability under rapid temperature changes.
Chemical Corrosion Resistance
Resists acid, alkali, and slag erosion, ideal for harsh environments.
High Mechanical Strength
Withstands heavy loads and abrasion.
Energy Efficiency
Low thermal conductivity reduces heat loss.
Low Thermal Conductivity
Provides effective insulation, reducing heat loss and improving energy efficiency.
Applications
Aluminum oxide brick is widely used is Metallurgy,Construction,Chemical Industry and Power Industry.Below is the details:
1.Blast furnaces
2.Hot blast stoves
3.Electric furnaces
4.Cement kilns
5.Glass kilns
6.Ceramic kilns
7.Petrochemical reactors
8.Gas generators
9.Boiler linings
10.Incinerator refractory layers
11.CFB boiler
Packaging and Shipping
1.Packed on wooden pallets with moisture-proof film to prevent damage.
2.Keep in dry, ventilated areas.
Why Choose Us?
We are a modern integrated enterprise specializing in refractory materials, combining R&D, production, design, construction and technical services. Our business covers development, manufacturing and sales of refractory materials and insulation material
Our engineers will recommend right bricks for you based on:
Operating temperature → Determines Al₂O₃ content
Chemical environment → Corrosion resistance grade
Mechanical load → Density & strength requirements
Free samples to be provided.
Within in 8 hours to respond your inquiry.
If you receive defective products,We guarantee:24-hour response,Solution within 48 hours and Replacement/refund options.
Our company supplies a complete range and type of Refractory High alumina brick, including:
Standard to high-grade products (Al2O3: 48%-90%)
Special-function types (spalling-resistant, low-creep, microporous, etc.)
Custom-engineered solutions for specific applications
