Strontium Salt Kiln Refractory Lining Solutions

Name: China Strontium Salt Kiln Refractory Lining Solutions Manufacturers Suppliers Factory - Luming New Materials
Brand: Luming
SKU: 306469302

Custom Kiln Lining for Strontium Carbonate Production

Tel/WhatsApp:0086-18905335290

Email:luming@lm-kiln.com

A Strontium Salt Kiln is a industrial furnace equipment specifically designed for producing strontium compounds. They are primarily used to convert natural strontium minerals (such as celestite SrSO₄) into various strontium salt products, including strontium carbonate, strontium nitrate, strontium chloride, etc.The rotary kiln is the most common type.Our Shandong Luming New Materials Technology Co., LTD has specialized in refractory materials for various types of rotary kilns for over twenty years. To address the drawbacks of traditional masonry techniques, we developed an innovative "brick-and-mortar hybrid masonry process" (Patent No.: 201010130626.6).

Strontium salt kilns are primarily used to produce the following strontium compounds:

Strontium carbonate (SrCO₃): Used in manufacturing cathode-ray tube glass, magnetic materials, ceramic glazes, etc.

2.Strontium nitrate (Sr(NO₃)₂): Used in pyrotechnics and flares as a red flame agent.

3.Other strontium salts: Such as strontium hydroxide and strontium chloride, used in pharmaceuticals, catalysts, and other fields.

Our Proprietary Core Technology for strontium salt rotary kiln

Our Shandong Luming New Materials Technology Co., LTD has specialized in refractory materials for various types of rotary kilns for over twenty years. To address the drawbacks of traditional masonry techniques, we developed an innovative "brick-and-mortar hybrid masonry process" (Patent No.: 201010130626.6).

This construction technology has been officially included in China's national《Furnace Construction Manual》.

This masonry process innovatively combines the advantages of refractory brick laying and castable monolithic pouring, while effectively overcoming the limitations of both conventional methods.

Standardized refractory material design schemes have also been developed for different types of kilns.With field applications in over 100 rotary kilns and continuous iterative upgrades, this solution reliably meets diverse customer requirements.

The first-generation technology prioritized operational safety and efficiency, delivering secure and long-lasting rotary kiln refractories that significantly reduced maintenance frequency while maximizing equipment uptime.

The second-generation system integrates low-thermal-conductivity materials to achieve 30% reduction in kiln shell temperature and over 10% energy savings while maintaining the safety and longevity advantages. This breakthrough directly supports clients' energy conservation, emission reduction, and green production initiatives.

The current third-generation masonry technology and products utilize nanomaterials, achieving safety, longevity, energy efficiency, and environmental sustainability while further reducing the thickness of refractory materials, offering significant advantages in lightweight design.

How we do for strontium salt kiln refractory?

Our Lining Installation Process----1.Marking

Marking equally spaced lines according to the calculated number of precast brick rows

Our Lining Installation Process----2.Installing Bricks According to the Marked Lines

Precast refractory bricks are arranged axially (front-to-back) along the rotary kiln, and fixed to the kiln shell by welding anchor hooks.

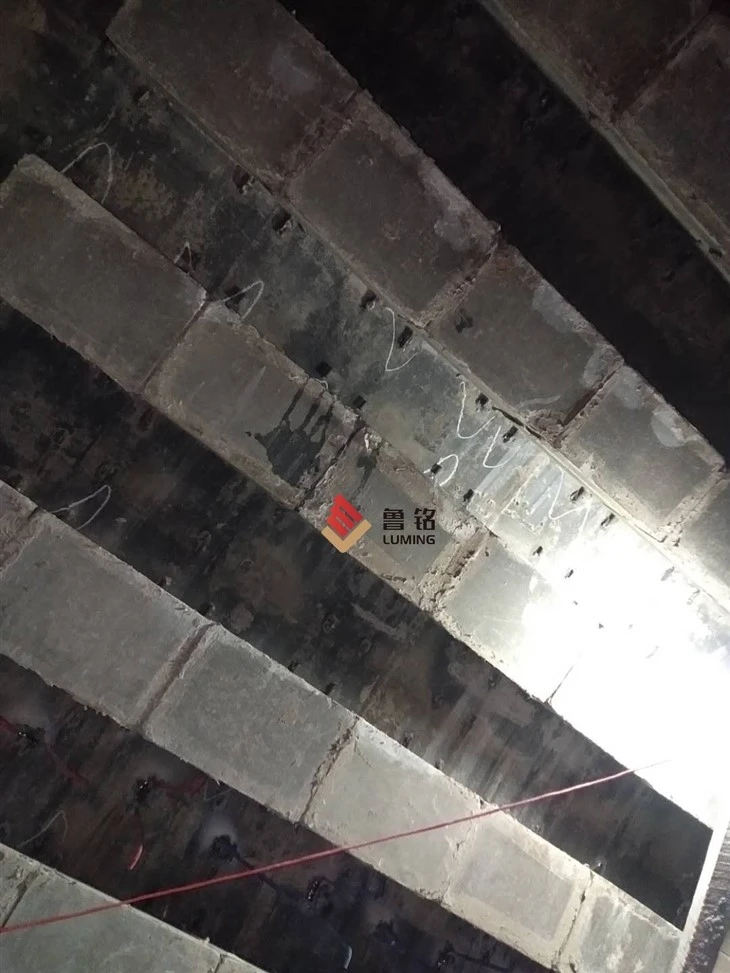

Our Lining Installation Process-----3.Completion of Precast Refractory Brick Installation

Image of Completed Welding of All Precast Refractory Bricks in Rotary Kiln

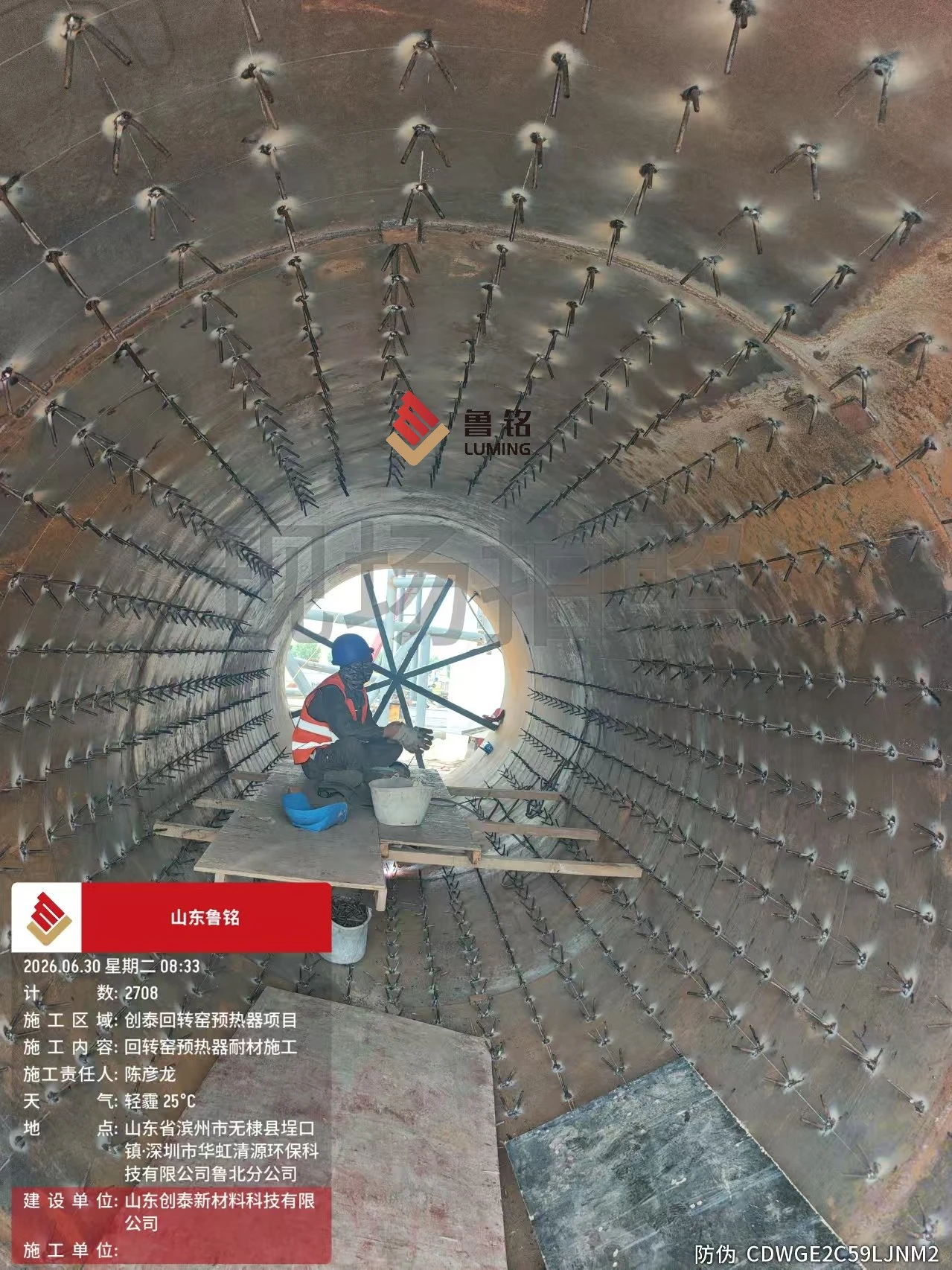

Our Lining Installation Process----4. Welding Anchor Hooks Between Precast Refractory Bricks

Welding anchor hooks between precast refractory bricks to provide fixed support for the castable material poured between them.

Our Lining Installation Process-----5.Laying Insulation Materials

After welding the anchor hooks between the precast refractory bricks, lay the insulation materials

Our Lining Installation Process------ 6. Casting Castable Refractory Between Precast Bricks

After the insulation materials have been fully laid, proceed with casting castable refractory in the casting zones.

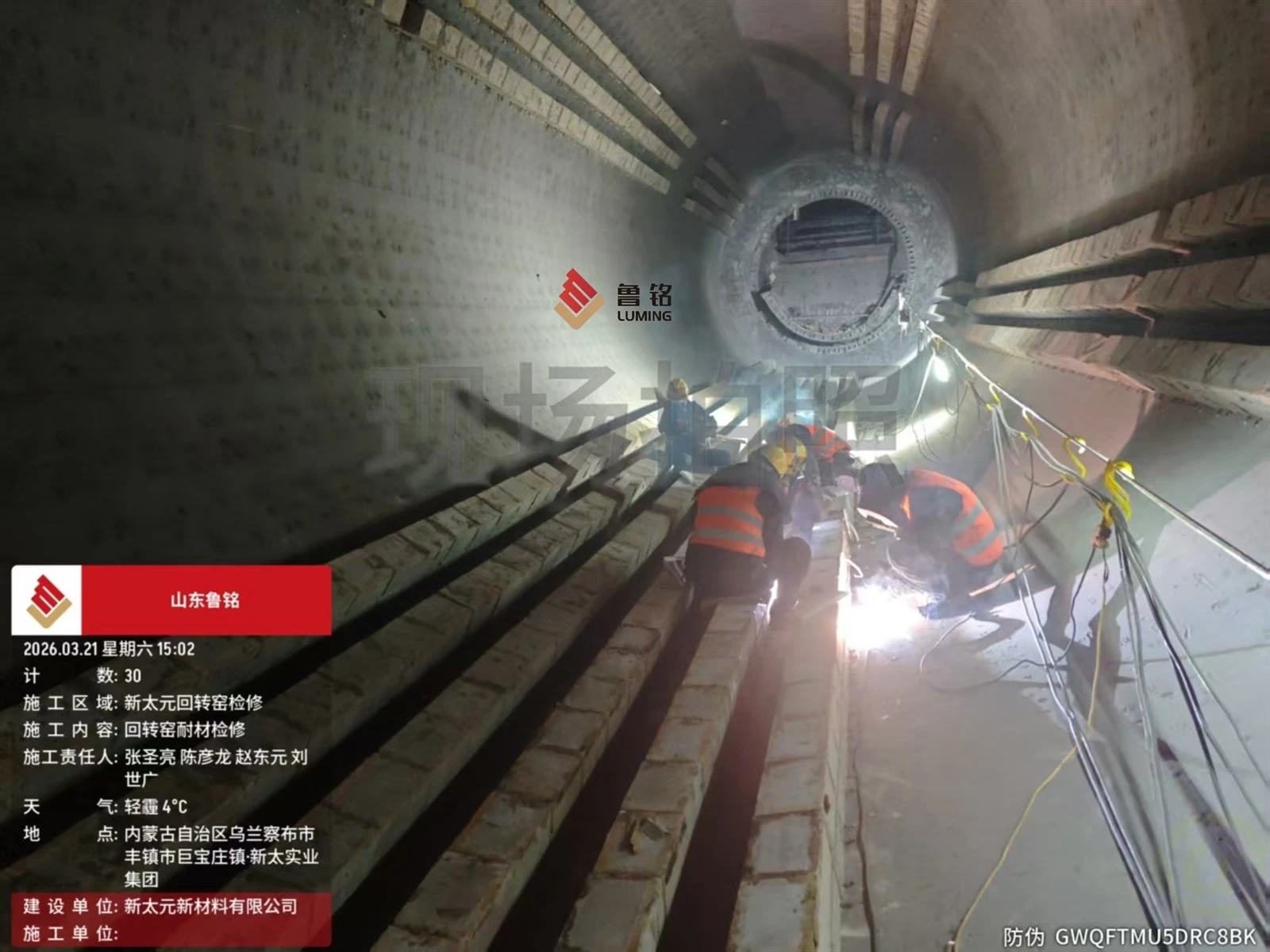

Photos During Masonry and After Full Completion

Our Product Portfolio--Rotary Kiln and Auxiliary Equipment:

New Energy and Chemical Rotary Kiln:

Lithium Salt and Strontium Salt Rotary Kiln;Barium Sulfide and Barium Oxide Rotary Kiln; Titanium Dioxide Rotary Kiln:

Item		LM-GM75	LM-M70	LM-M65	LM-D60	LM-D45
AL₂O₃_,% ≥		75	68	65	60	45
Bulk Density (g/m³)±0.1		2.75	2.70	2.55	2.50	2.35
Compressive Strength(MPa)≥	110℃X24h	70	70	60	50	40
	1100℃X3h	80	70	80	70	60
	1350℃X3h	120	100	100	/	/
Modulus of Rupture(MPa)≥	110℃X24h	8	8	6	6	6
	1100℃X3h	10	12	10	8	8
	1350℃X3h	14	14	12	/	/
Linear change rate, 1350℃x3h, % , ±		0.5	0.5	0.5	0.5	0.5
Service Environment		Lithium Hydroxide, Lithium Carbonate, Lithium Chloride and Other Lithium Salts Rotary Kiln	Rotary Kiln for Strontium Carbonate, Strontium Hydroxide, Barium Sulfide, etc	Low-Temperature Section of Rotary Kiln for Lithium Salts, Strontium Salts, Barium Salts, etc	Rotary kiln kiln hoods, smoke chambers, and other components for various acid, alkali, and salt production	Areas with temperatures below 1100℃ exhibiting excellent acid and alkali resistance

Usage Results of our strontium salt kiln refractory:

Compared to Traditional Small Brick Masonry Process:

1.Cylinder temperature reduced by more than 30%

2.Fuel cost savings exceeding 10%

3.Completely eliminates brick dropping issues

4.Total refractory weight of the kiln body reduced by 10%, resulting in electricity savings of 10%

5.After 6 months of operation, the refractory cost is effectively equivalent to free usage

Alternative Solution ---All-Precast Refractory Brick Solution for Winter Construction in Extremely Cold Areas:

1.No casting zones required; castable refractory is unnecessary

2.Formed precast bricks are assembled by splicing and welded installation

3.Excellent thermal insulation performance

4.Secure and reliable fixation with no risk of brick loosening or dropping

Front-to-back welded assembly enables rapid splicing and high construction efficiency

Our Main Applications:

1.Metallurgical & Nonferrous Industry:Standard Pelletizing Rotary Kiln,Ferronickel Rotary Kiln,Ferromanganese rotary kiln,Vanadium-Titanium Rotary Kiln, Ferrochrome Rotary Kiln,Alumina Rotary Kiln,Magnesium Metal Rotary Kiln,Zinc Recovery Rotary Kiln,Iron Ore Roasting-Reduction Rotary Kiln,etc.

2.Building industry:Lime Rotary Kiln,Dolomite Calcining Kiln

3.New Energy Industry: Lepidolite Rotary Kiln,Spodumene Conversion Kiln

4.Environmental protection industry: Hazardous Waste Rotary Kiln,Hazardous Waste Rotary Kiln,Sodium Pyrophosphate Thermal Oxidizer,Sodium Pyrophosphate Thermal Oxidizer

5.Coke Oven Door Brick,Coke Dry Quenching Castable Refractory

Our Quality Assurance Measures

1.Actively implement the ISO9001 quality management system standard, establish and continuously improve a quality assurance system to ensure its effective operation and continuous improvement, and provide users with reliable quality assurance.

2.Hold technical special meetings to analyze technical requirements, develop technical solutions, and formulate process technical operating procedures through laboratory research and development, all based on the different product requirements of various users.

3.For each project, a dedicated project manager is assigned to lead a quality accountability team. The functions and responsibilities of each member of this team are clearly defined.

4.We implement strict quality control for material procurement. We compare offers from multiple suppliers and select raw materials from reputable, high-quality large and medium-sized enterprises.

5.Strict process requirements are enforced to fully leverage our company's comprehensive and mature quality control points. Non-conforming products are strictly prohibited from proceeding to the next stage, thereby implementing quality control throughout the entire production process.

6.Utilizing our company's existing inspection methods, we conduct regular quality checks. We thoroughly analyze any issues found, inspect quality fluctuations, analyze quality trends, and research and formulate measures for quality improvement. This ensures that the process quality remains in a controlled state at all times.

7.The fully automatic production line ensures that every batch of products is manufactured under consistent production conditions, guaranteeing stable product quality without fluctuations.

8.Each product batch undergoes synchronous system sampling and is tested for various indicators according to customer requirements. Only after passing the tests is it packaged and shipped.

9.For the stacking, storage, transportation, and warehousing of refractory materials, our company will strictly comply with the relevant requirements of national standards.

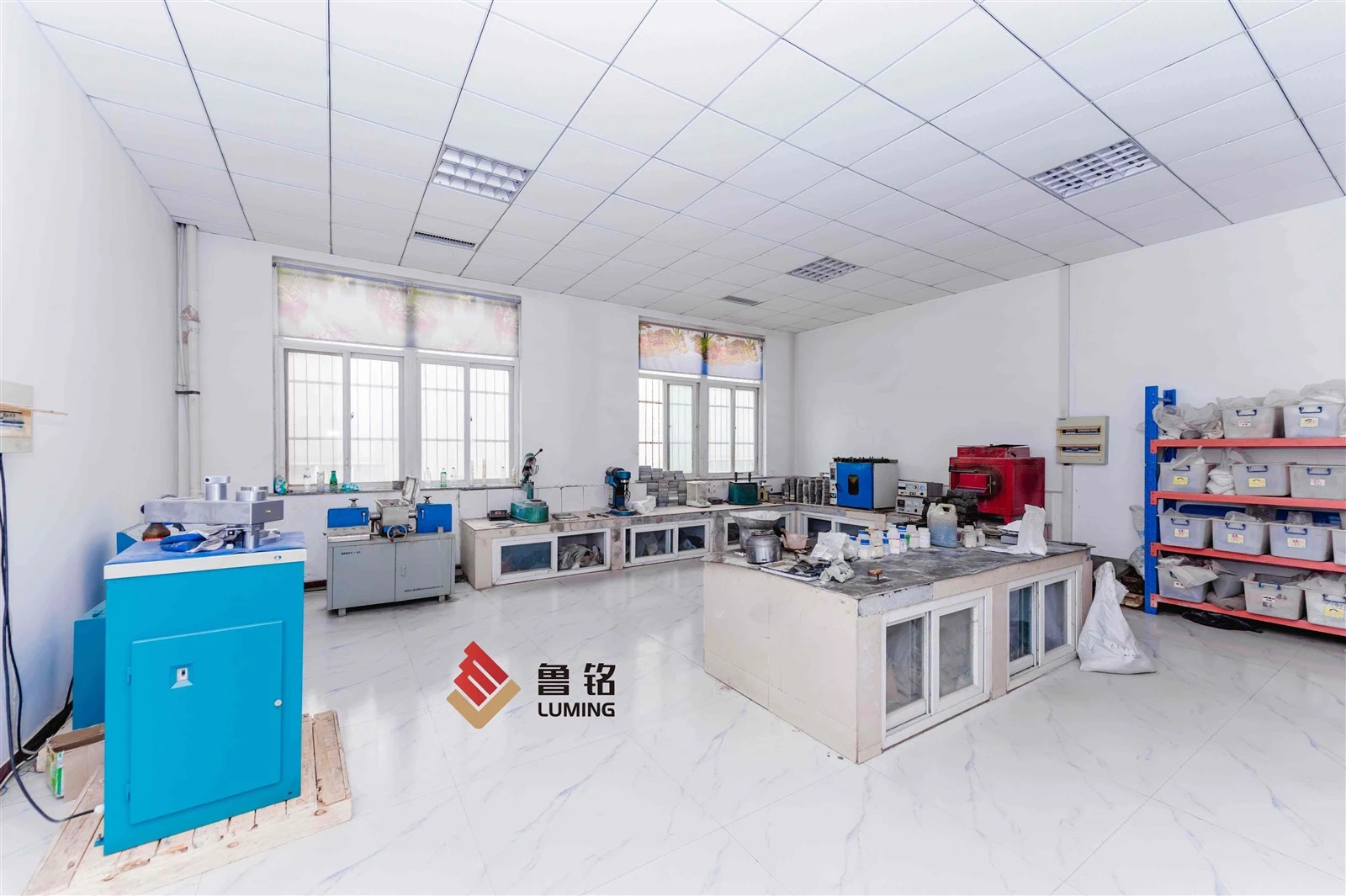

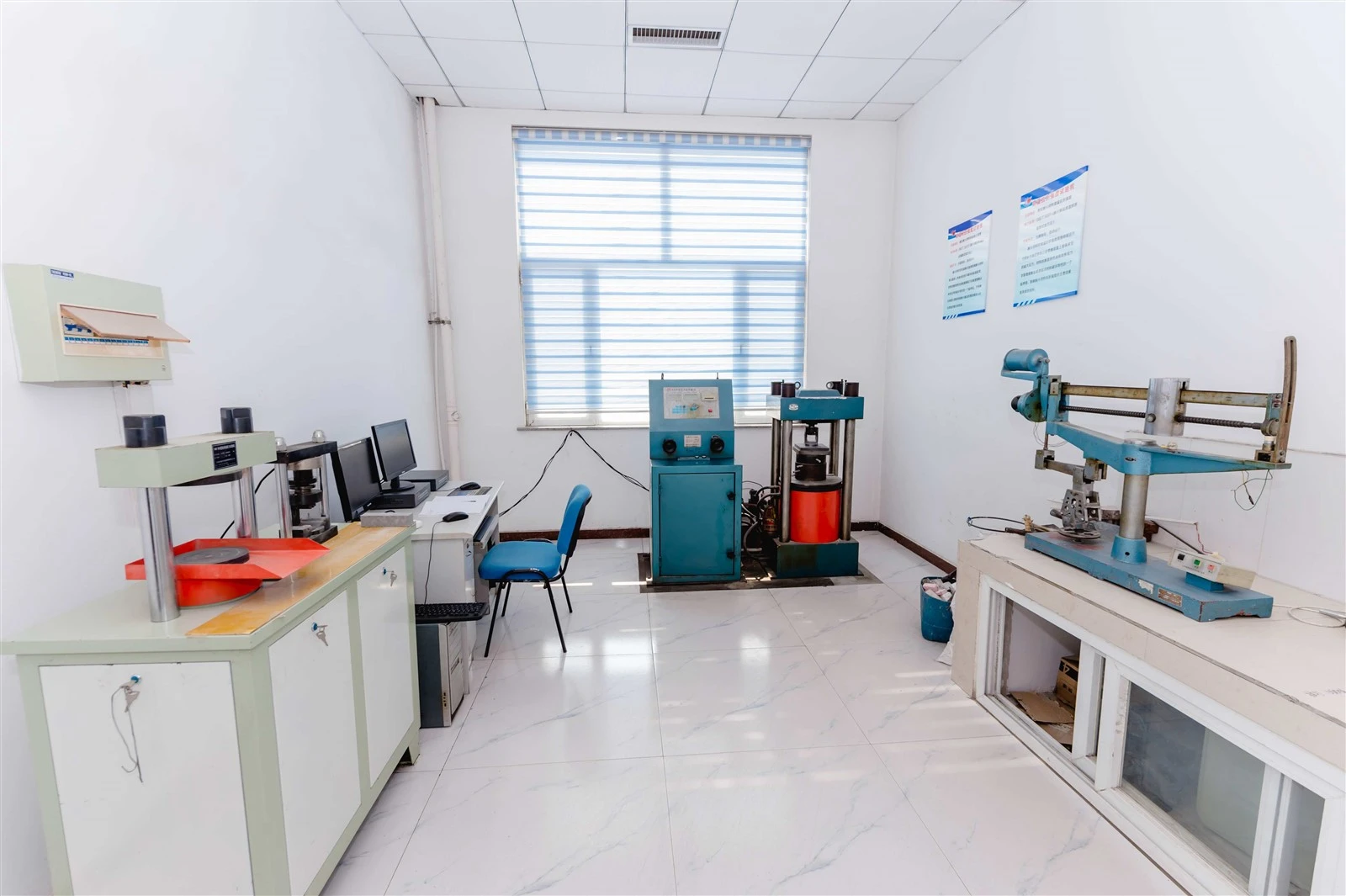

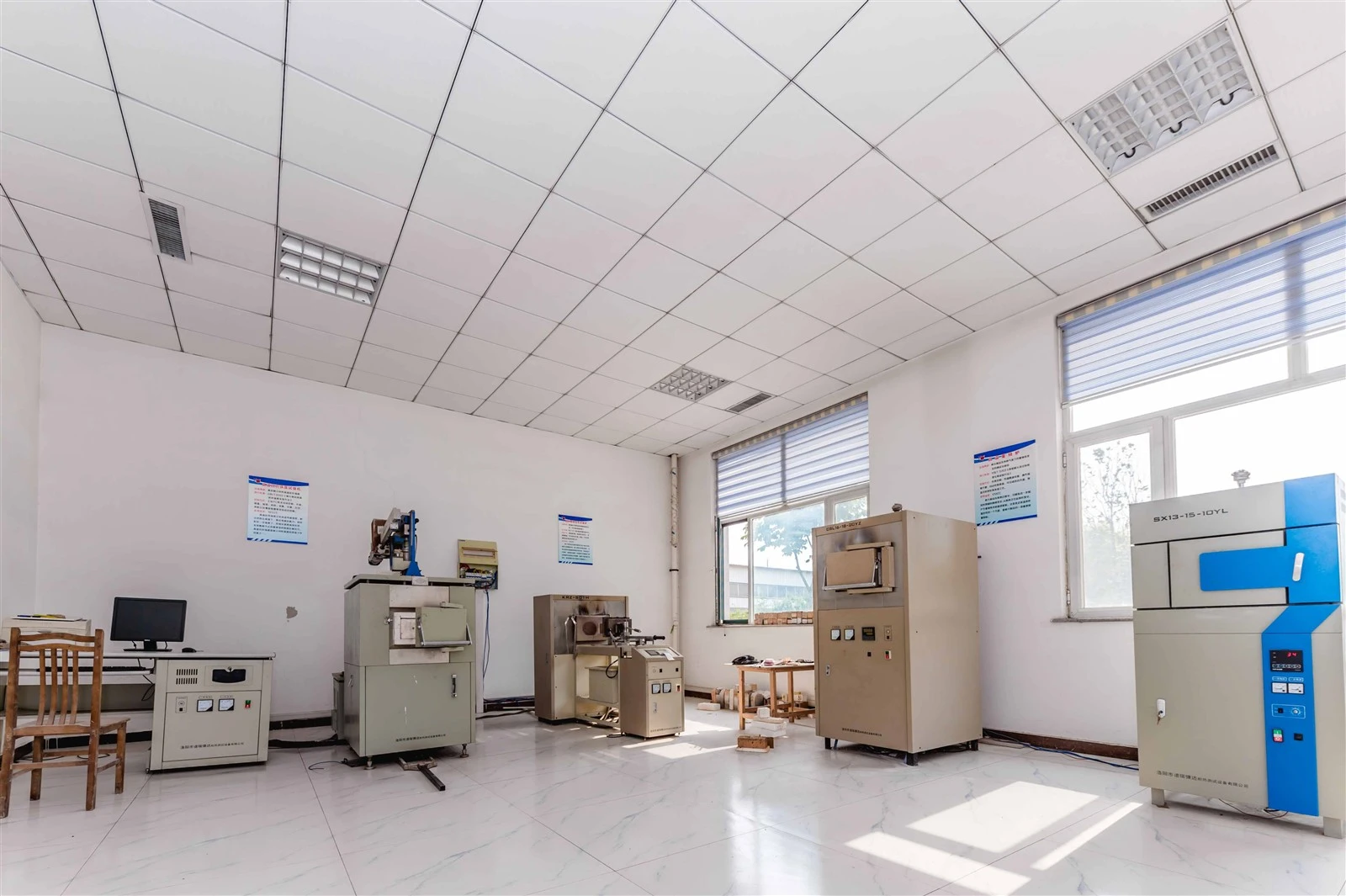

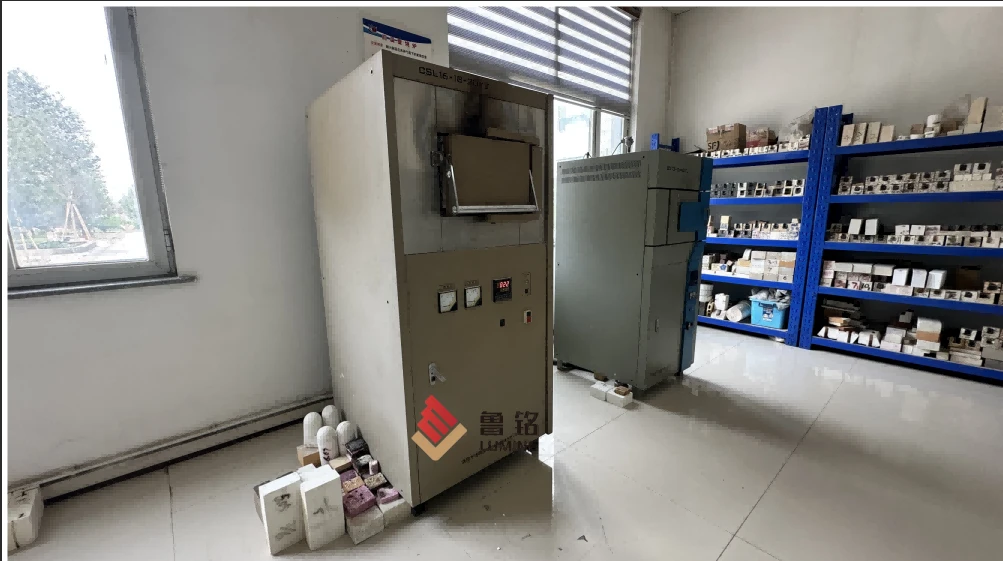

Advanced Physical and Chemical Experimental Testing Equipment and Standardized Physico-Chemical Laboratory

CORPORATE ENVIRONMENT AND FACILITIES

Fully Automated Castable Refractory Production Line in Workshop 1

Precast Production Site in Workshop 1

Special Refractory Production and Firing Workshop Site

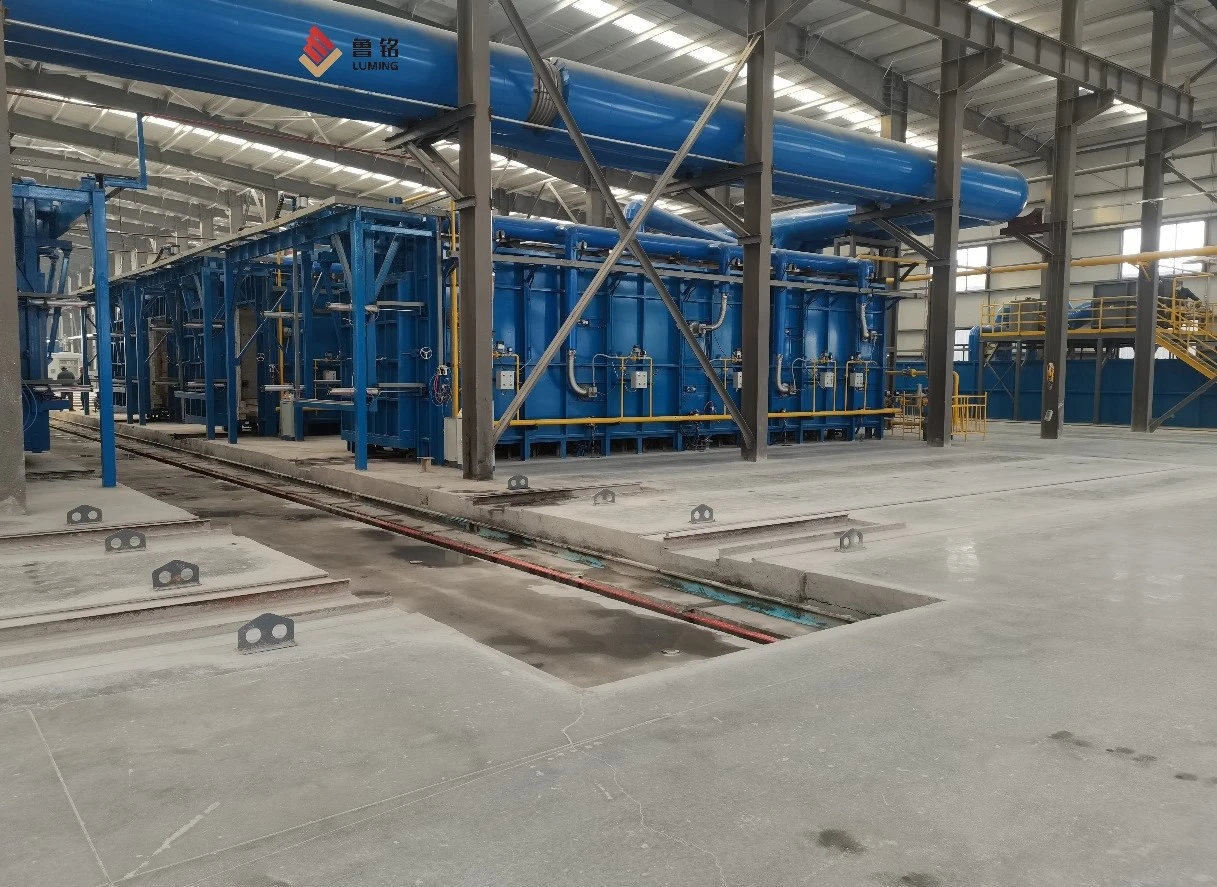

7 × 52m³ Shuttle Kilns in Special Refractory Workshop

75m Firing Tunnel Kiln in Special Refractory Workshop

Fully Automatic Glaze Spraying Equipment

Our service:

1. We strictly adhere to all agreements signed with our clients and conscientiously accept the obligations therein.

2. We commit to delivering all supplied materials to the client's designated location within the specified timeframe. We also guarantee that all product physicochemical indicators will meet the buyer's requirements. If any material is found to be non-conforming upon inspection, we will unconditionally replace or refund it and bear all associated costs.

3.We will strictly comply with the technical requirements for all supplied products. Upon delivery, we will provide a genuine and credible "Product Quality Certificate," "Test Report," and "Product Usage Instructions." We are also willing to accept random sampling inspections of the products by the buyer.

4.During construction, our company will dispatch professional technical personnel to the site to provide on-site tracking and support. They will offer technical guidance on the construction, furnace baking, and trial operation of the materials, promptly addressing and resolving any related issues. They will also assist the construction team with product protection and other relevant tasks.

5.For kilns constructed by our company, we are willing to provide detailed furnace drying curves.

6.Should any quality issues arise during use, we commit to being on-site within 24 hours for domestic clients in the province and within 48 hours for those outside the province upon receiving notification. For international clients, a written response will be provided within 24 hours to assist in the investigation and analysis of the issues.

7.We commit to taking responsibility for any losses caused by defects in the goods provided during the warranty period.

8.Should a product fail due to improper use by the client during the warranty period, we will actively assist with replacement, charging only for the cost of the materials.

9.Even after the warranty period expires, our company will remain actively involved in assisting with the resolution of any issues that may arise.

10.Technical personnel will conduct regular quality feedback sessions to solicit suggestions for improvement and enhance service quality.

Our Packing and shipping

All delivered goods are packaged in strict compliance with the buyer's requirements as well as relevant national and industry standards.Shaped products such as refractory bricks and precast blocks are typically packaged on wooden pallets, wrapped with stretch film for sealing, and secured with plastic-steel strapping.Unshaped refractory materials are packaged in 25-50kg plastic bags, with additional outer protection using bulk bags.Our company provides customized packaging solutions including containers, wooden cases, metal boxes, and moisture-proof marine packaging, fully compliant with both local regulations and corporate requirements in your market.
